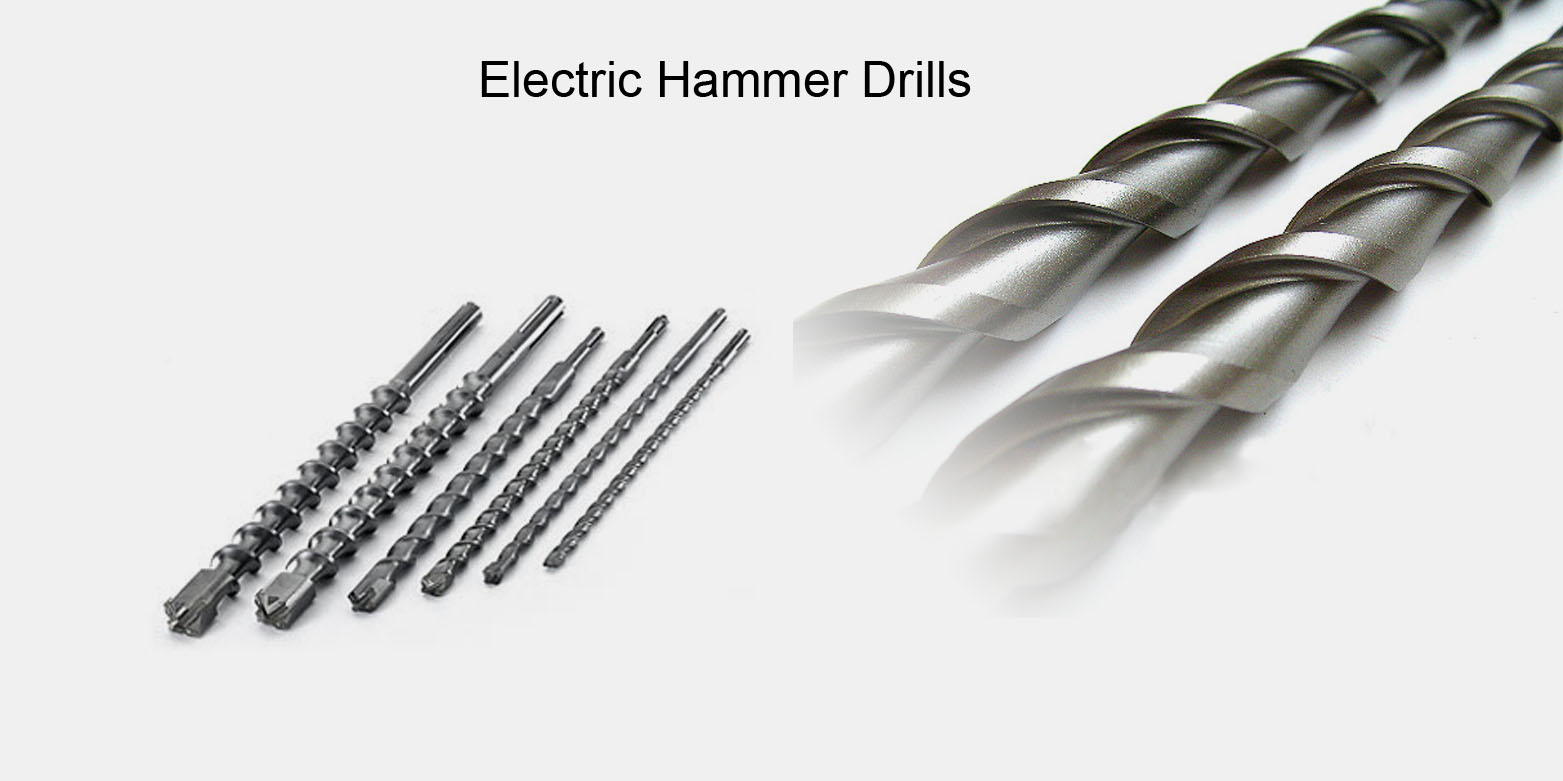

The body of carbide alloy electric hammer drill employs a high-grade alloy steel. The drill tip is welded with YG carbide alloy steel.It can be used with various types of electric hammers.It is a widely applicable and highly efficient drilling tool for the construction or installation trades.



SDS-Plus Shank			SDS-Max Shank			Four-Hollw Square Shank			Hex-Shank Modelâ…¡
D.	L1	L2	D.	L1	L2	D.	L1	L2	D.	L1	L2
14	160	100	12	340	200	6	110	50	10	230	100
14	210	150	12	540	400	6	150	100	10	280	150
14	260	200	13	340	200	6.5	110	50	12	230	100
14	310	250	13	540	400	6.5	150	100	12	280	150
14	350	300	14	340	200	8	110	50	13	280	150
14	450	400	14	540	400	8	150	100	14	280	150
16	160	100	15	340	200	10	150	100	16	280	150
16	210	150	15	540	400	12	150	100	16	505	375
16	260	200	4edges			13	150	100	18	280	150
16	310	250	16	390	250	13	350	300	18	505	375
16	350	300	16	540	400	14	150	100	19	280	150
16	450	400	18	390	250	14	350	300	19	505	375
18	200	100	18	540	400	16	150	100	20	280	150
18	250	200	20	370	250	16	200	150	20	505	375
18	300	250	20	540	400	16	350	300	22	280	150
18	350	300	22	370	250	18	200	150	22	505	375
18	450	400	22	540	400	18	350	300	25	280	150
19	200	150	25	370	250	20	200	150	25	505	375
19	300	250	25	540	400	20	350	300	28	280	150
19	450	400	28	370	250	22	200	150	28	505	375
20	200	150	28	540	400	22	350	300	30	280	150
20	250	200	30	370	250	25	200	150	30	505	375
20	300	250	30	540	400	25	350	300	32	280	150
20	350	300	32	370	250	26	350	300	32	505	375
20	450	400	32	540	400	5PCS/SET			35	280	150
22	250	200	35	370	250	10	150	100	35	505	375
22	350	300	35	540	400	12	150	100	38	280	150
22	450	400	38	370	250	14	150	100	38	505	375
24	250	200	38	540	400	18	350	300
24	450	400	40	370	250	22	350	300
25	250	200	40	540	400
25	350	300
25	450	400
26	250	200
26	450	400
