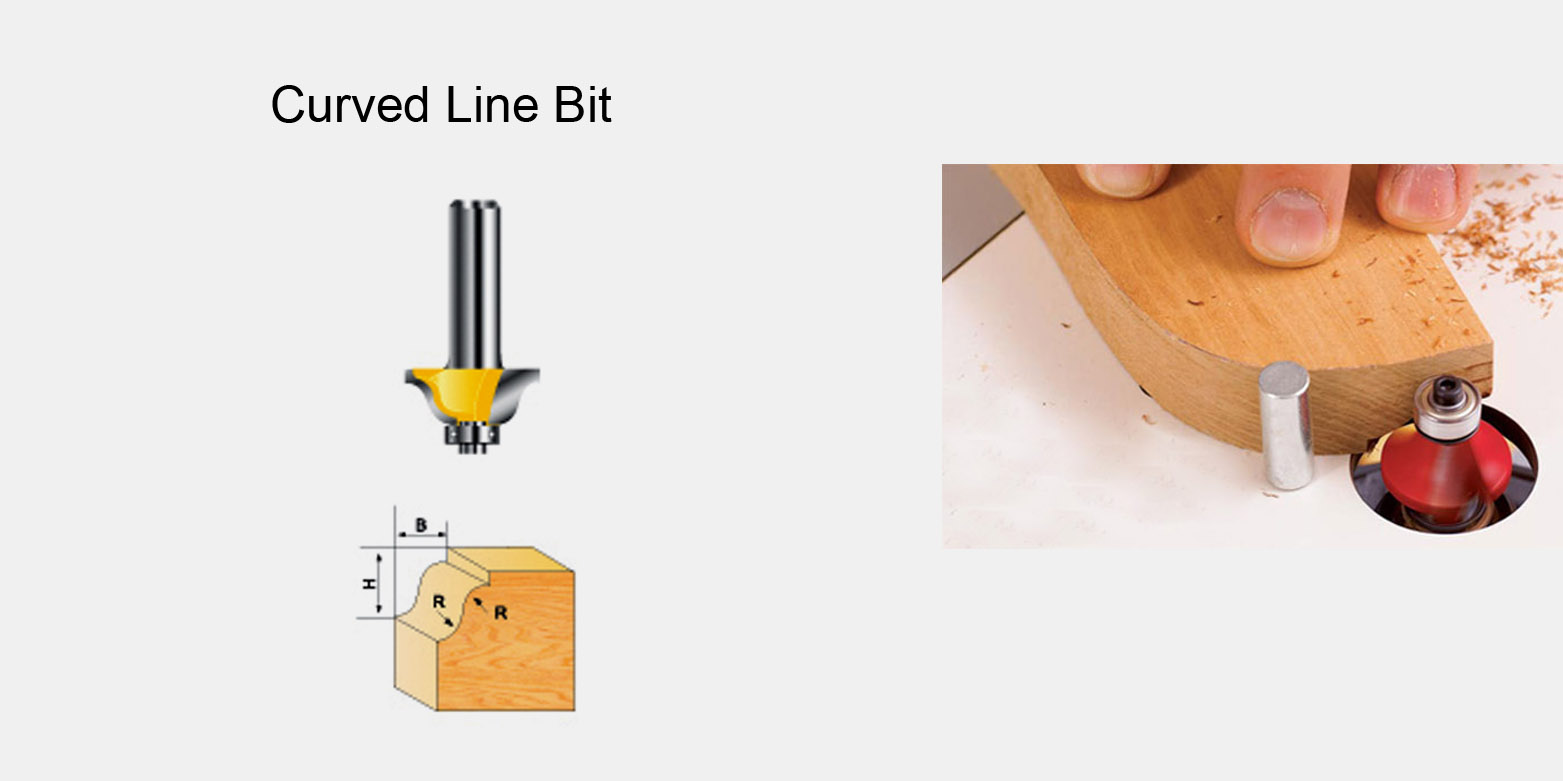

| Product Name:Curved Line Bit |
| Content: Curved Line Bit
|
AONE-25 Curved Line Bit |
|
Part No. |
Size |
D |
R |
B |
H |
|
AONE25001 |
1/4×3/8 |
22.5 |
2.38 |
4.76 |
8.0 |
|
AONE25002 |
1/4×1/2 |
25.7 |
3.17 |
6.35 |
9.7 |
|
AONE25003 |
1/4×5/8 |
28.9 |
3.96 |
7.95 |
11.5 |
|
AONE25004 |
1/4×3/4 |
32 |
4.76 |
9.52 |
14.0 |
|
AONE25005 |
1/4×7/8 |
35.2 |
5.6 |
11.1 |
15.7 |
|
AONE25006 |
1/2×1 |
38.2 |
6.35 |
12.7 |
18.2 |
|
AONE25007 |
1/2×3/8 |
22.5 |
2.38 |
4.76 |
8.0 |
|
AONE25008 |
1/2×1/2 |
25.7 |
3.17 |
6.35 |
9.7 |
|
AONE25009 |
1/2×5/8 |
28.9 |
3.96 |
7.95 |
11.5 |
|
AONE25010 |
1/2×3/4 |
32 |
4.76 |
9.52 |
14.0 |
|
AONE25011 |
1/2×7/8 |
35.2 |
5.6 |
11.1 |
15.7 |
|
AONE25012 |
1/2×1 |
38.2 |
6.35 |
12.7 |
18.2 |
|
AONE25013 |
1/2×1-1/8 |
71.6 |
7.14 |
14.3 |
18.7 |
|
AONE25014 |
1/2×1-1/4 |
44.7 |
7.95 |
19.05 |
25.5 |
|
AONE25015 |
1/2×1-3/8 |
47.92 |
8.73 |
17.46 |
23.46 |
|
AONE25016 |
1/2×1-1/2 |
51.1 |
9.52 |
19.05 |
25.5 |
|
AONE25017 |
1/2×1-5/8 |
54.27 |
10.31 |
20.63 |
27.0 |
|
AONE25018 |
1/2×1-3/4 |
57.48 |
11.1 |
22.2 |
28.3 |
|
AONE25019 |
1/2×2 |
63.8 |
12.7 |
25.4 |
31.8 |
|
AONE25020 |
1/2×2-1/2 |
76.5 |
15.8 |
31.75 |
38 |
|
AONE25021 |
1/2×3 |
89.2 |
19.05 |
38.1 |
44 |
|
|
|
