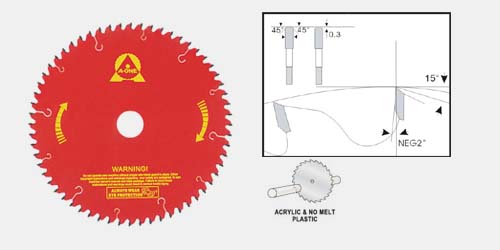

When cutting acrylics,polycarbonates and other plastics,”chip-welding’—a melting of

The material—is a concern.But not with the Non-Melt blade.With a modified triple-chip

Grind and a 2°negative hook angle,the blade produces less heat than a standard blade,

Leaving a crisp,smooth edge.



D		Teeth	Grind	‘B’Kerf lnch	Tool No	‘C’Plate lnch	Bore	*P.H.
lnch	mm
8	200	64	MTC	.098	NM86401	.070	5/8”	-
-	220	64	MTC	.128	NM220T641	.079	30mm	-
10	250	80	MTC	.100	NM10801	.070	5/8”	2/7/42&2/10/60
12	300	96	MTC	.125	NM12961	.102	1”	-
14	350	108	MTC	.145	NM14108	.118	1”	-
16	400	120	MTC	.145	NM16121	.118	1”	-
